| Core Technology | Key Technical Processes | Typical Applications |
|---|---|---|

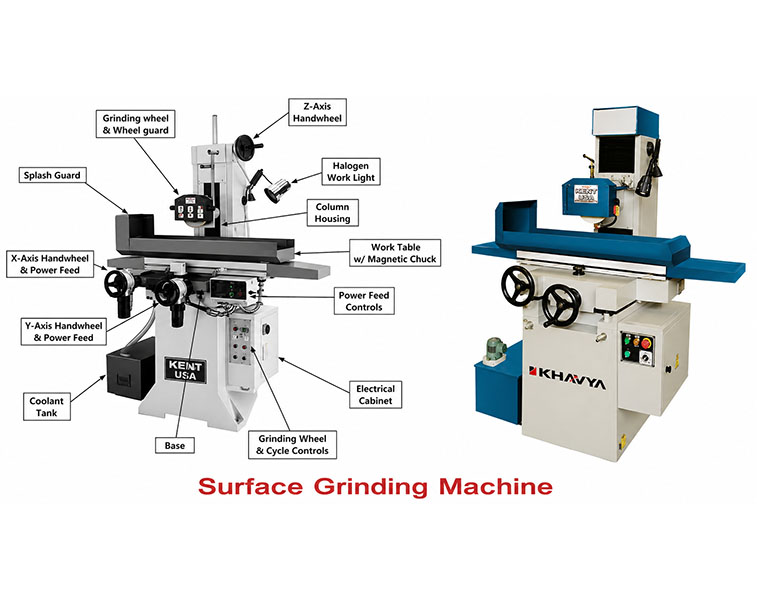

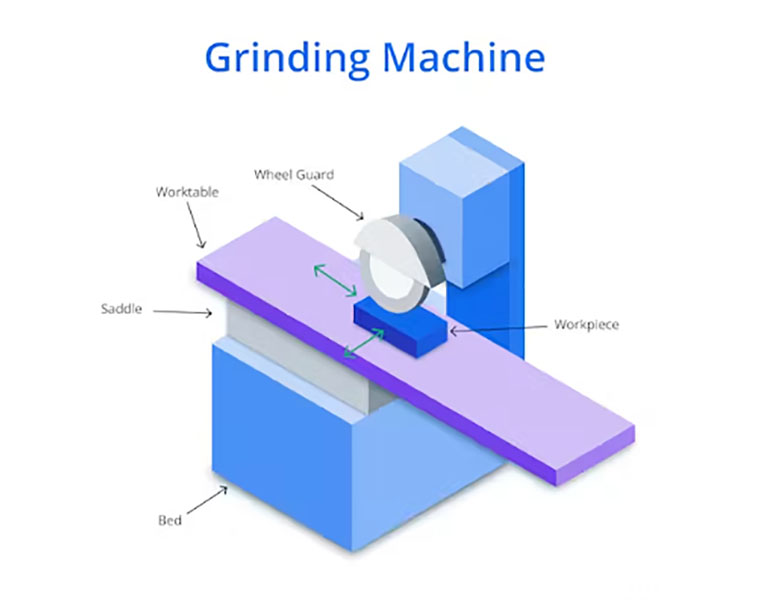

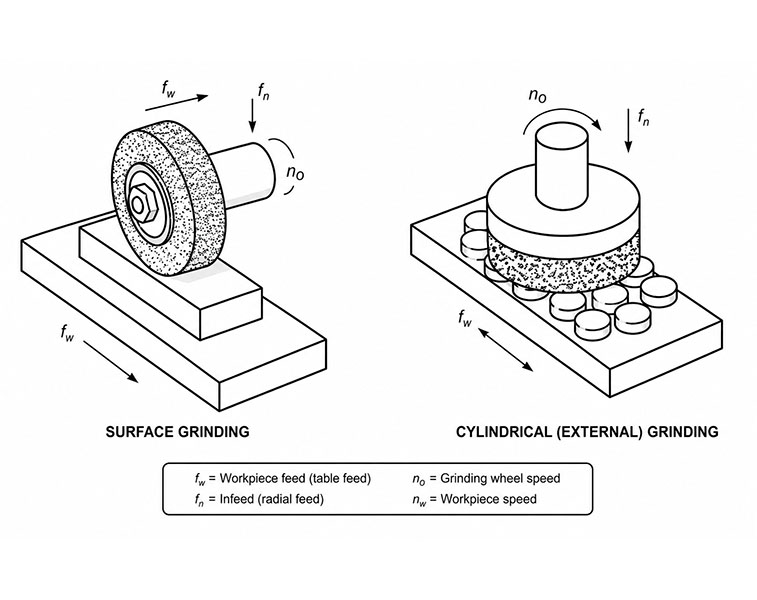

| Surface Grinding | ① High‑rigidity grinding machine to guarantee flatness and parallelism ② Precision wheel dressing to improve grinding stability ③ Coolant control to reduce thermal deformation and burn marks ④ Surface roughness up to Ra0.2~0.05μm | Precision molds, mold inserts, guide rails, fixtures, mechanical reference surfaces |

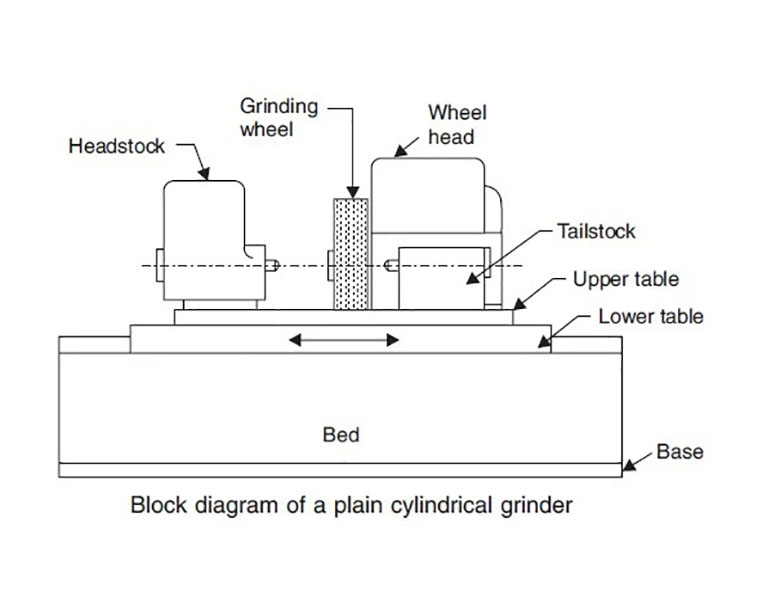

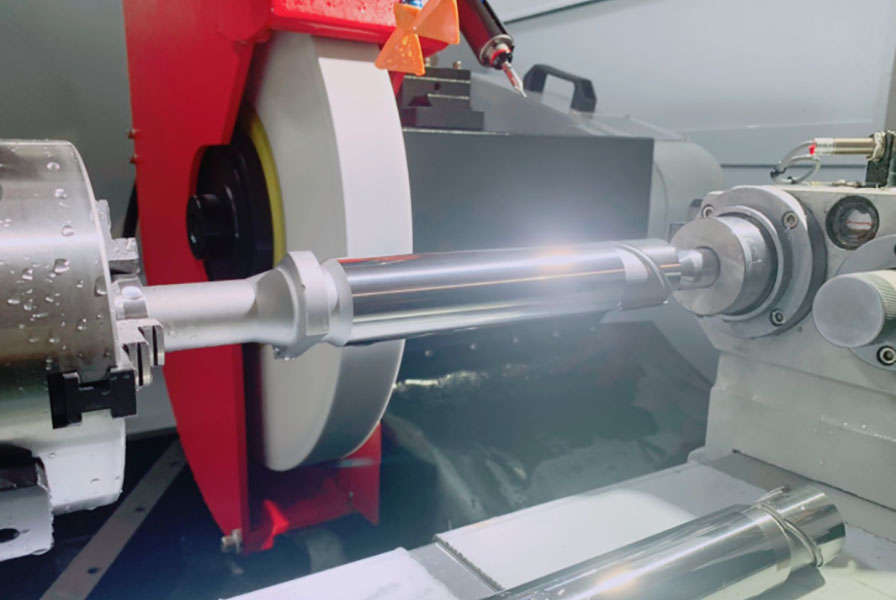

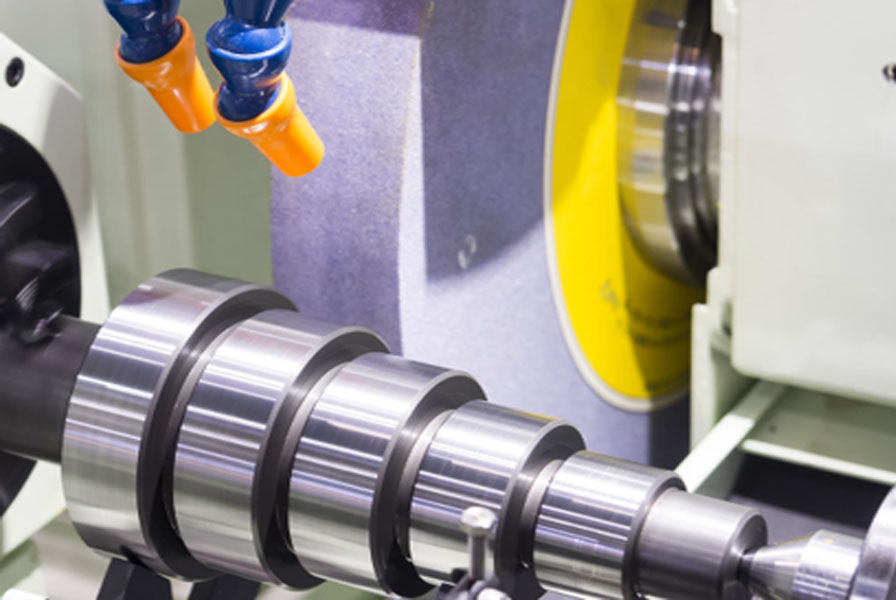

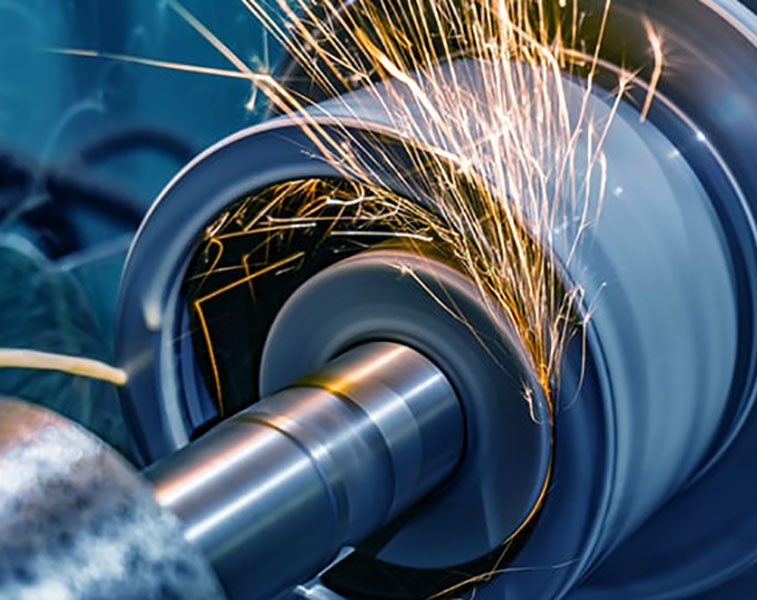

| Cylindrical Grinding | ① High‑precision spindle to control roundness and concentricity ② Automatic wear compensation to ensure dimensional consistency ③ In‑process measurement for tolerance control ±0.002mm ④ Prevention of chatter marks and burn marks | Precision shafts, lead screws, worms, rotary shafts, hydraulic shafts, aerospace shaft‑type parts |

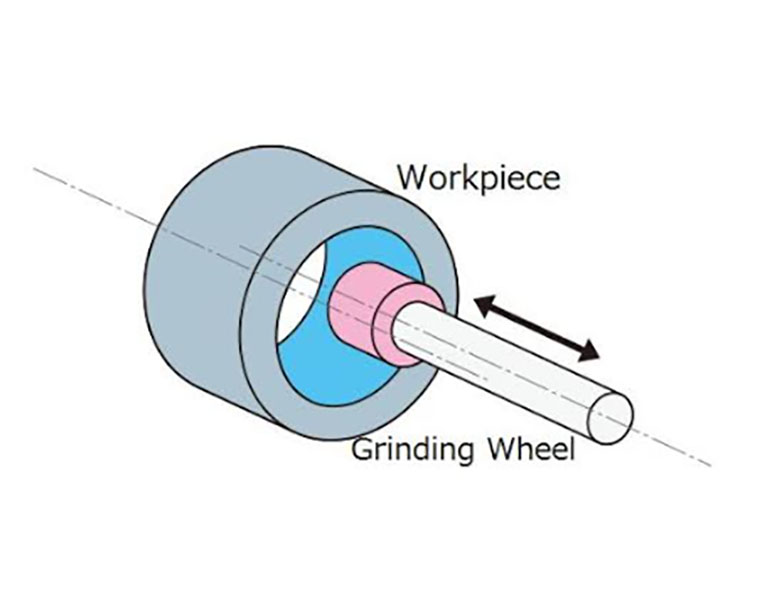

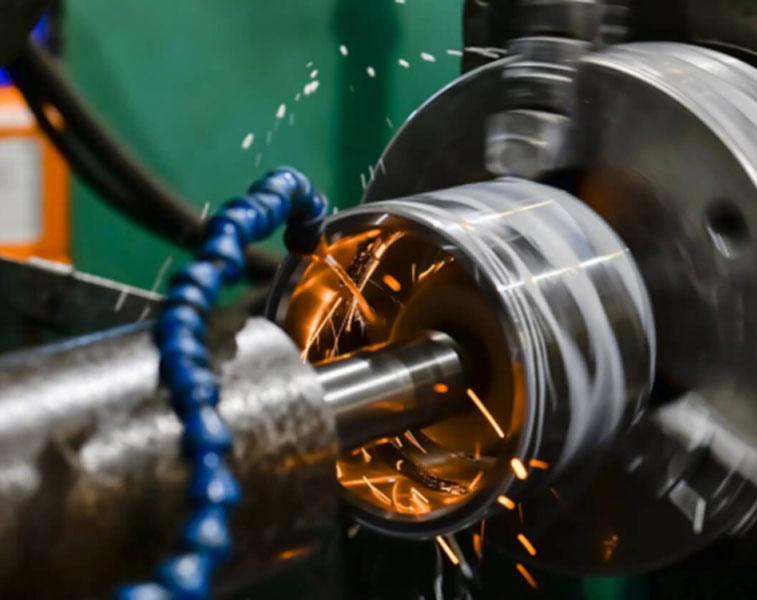

| Internal Grinding | ① High‑speed small‑diameter grinding spindle for inner bore machining ② Control of bore diameter accuracy and concentricity ③ Precision cooling to minimize bore thermal deformation ④ Ensure inner‑surface finish | Bearing inner rings, gear inner bores, hydraulic sleeves, precision bushings |

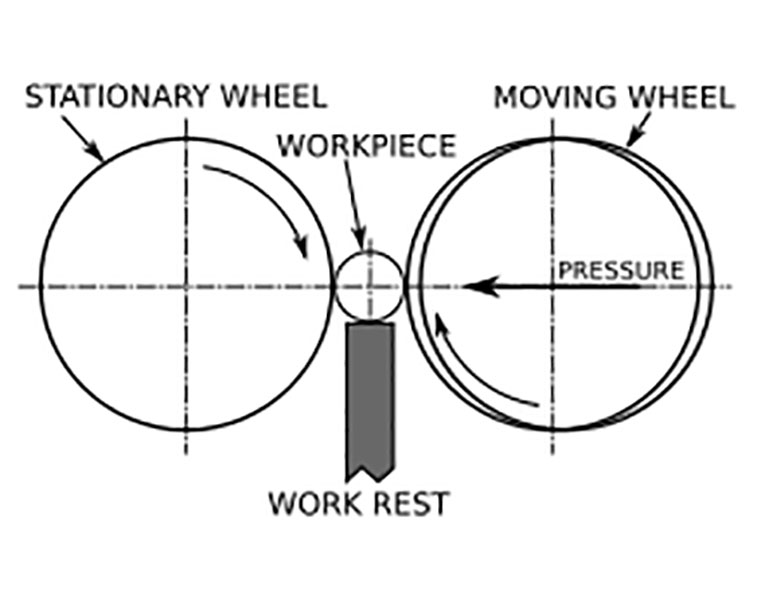

| Centerless Grinding | ① Continuous non‑center machining for high efficiency ② Synchronous control of regulating wheel and grinding wheel ③ Guarantee cylindricity and dimensional stability ④ Suitable for mass automated production | Pin shafts, guide posts, medical device shafts, automotive shaft‑type parts |
| Thread Grinding | ① High‑precision thread profile dressing ② CNC control to eliminate lead error ③ Accurate control of pitch and thread‑form accuracy ④ Meet high‑grade transmission requirements | Ball screws, trapezoidal screws, worms, aerospace fasteners, precision transmission components |

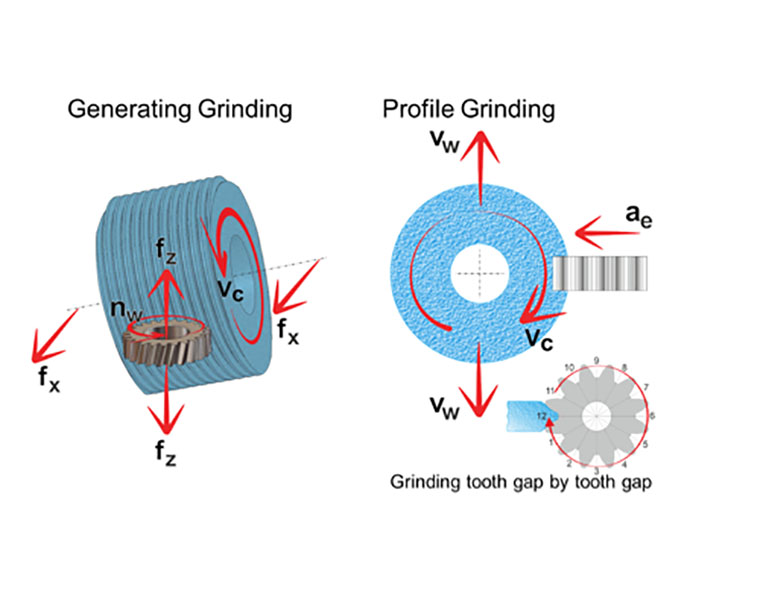

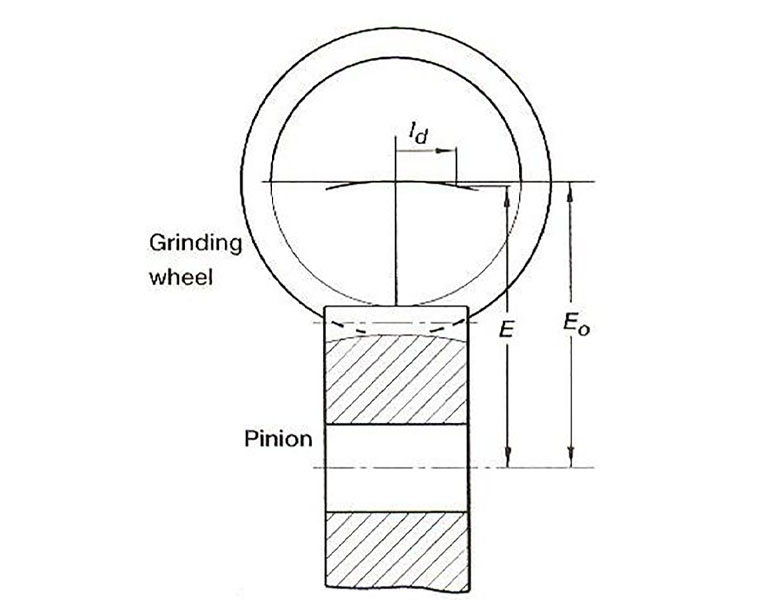

| Profile Grinding | ① CNC profile trajectory control for complex contours ② CAD/CAM program optimization ③ High‑precision contour inspection ④ Machining for complex geometries | Gears, cams, special‑shaped cutting tools, precision molds, aerospace parts |
| Grinding Process | Key Advantages |
|---|---|
| Surface Grinding | ① High flatness and excellent surface finish ② Improves dimensional accuracy, parallelism and perpendicularity ③ Suitable for precision plates, molds and fixture surfaces |
| Cylindrical Grinding | ① High roundness and dimensional accuracy ② Excellent surface roughness and consistency ③ Helps minimize deformation and surface defects |
| Internal Grinding | ① High precision for internal bores and cylindrical surfaces ② Tight dimensional tolerances and excellent surface finish ③ Improves wear resistance and component service life |
| Centerless Grinding | ① High processing efficiency and consistent quality ② No center holes required, ideal for high‑volume production ③ Excellent roundness, straightness and surface finish |
| Thread Grinding | ① High thread accuracy and profile control ② Smooth thread surfaces and precise fit ③ Improves wear resistance and assembly performance |
| Profile Grinding | ① Produces complex contours and precision profiles ② High dimensional accuracy and repeatability ③ Suitable for complex geometries, grooves and precision components |
| Grinding Process | Typical Applications |
|---|---|
| Surface Grinding | Molds, dies, guide components, spacers, machine bases, precision fixtures |
| Cylindrical Grinding | Precision shafts, pins, spindles, rollers, bearings, hydraulic components, transmission parts |
| Internal Grinding | Precision bores, inner rings, sleeves, cylinders, valve bodies, hydraulic components |
| Centerless Grinding | Pins, guide rods, shafts, rollers, automotive components, industrial parts |
| Thread Grinding | Lead screws, threaded shafts, precision fasteners, aerospace components, precision transmission parts |
| Profile Grinding | Gears, cams, complex‑shaped tools, precision molds, aerospace components, medical components |
China’s grinding manufacturing has become a globally competitive processing solution with mature core grinding technologies, stable equipment supply and cost‑effective delivery performance. It excels at high‑precision flat, cylindrical, internal, thread and complex‑profile machining for molds, shafts, sleeves, transmission components and aerospace‑grade parts. Supported by multiple grinding processes including surface, cylindrical, internal, centerless, thread and profile grinding, it achieves ultra‑low surface roughness down to Ra0.05μm, tight dimensional tolerances up to ±0.002 mm. It effectively minimizes thermal deformation, clamping errors and surface defects. Benefiting from a complete local industrial chain, Chinese grinding workshops deliver superior surface finish, consistent dimensional stability and reliable lead‑time performance, making it a preferred manufacturing option for global customers demanding high‑precision metal finishing solutions.

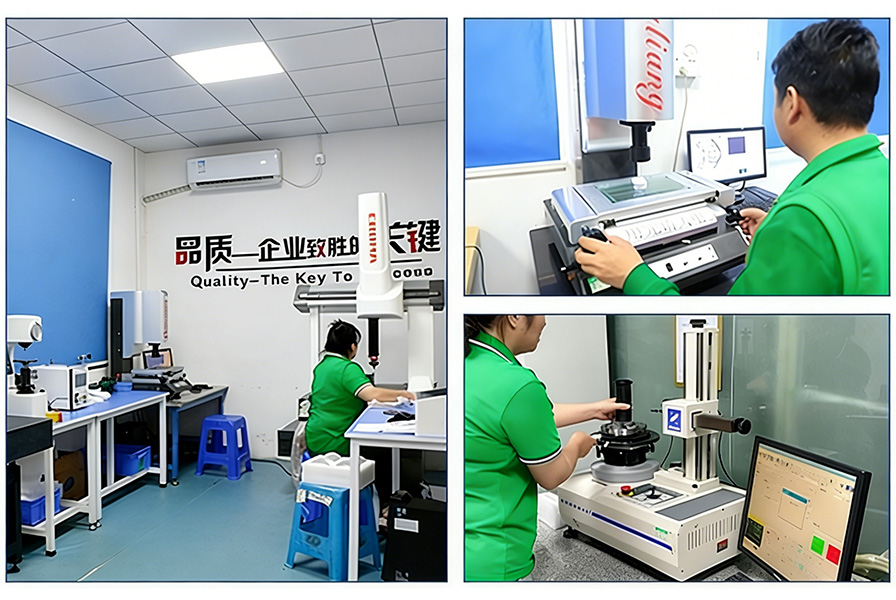

Huazheng specializes in high‑precision grinding service covering surface, cylindrical, internal, centerless, thread and profile grinding for complex shafts, sleeves, mold inserts and multi‑geometry precision components. We adopt targeted technical controls：high‑rigidity machine tools, precision wheel dressing, closed‑loop in‑process measurement and optimized cooling strategy to guarantee flatness, roundness, concentricity, cylindricity and fine surface quality. Our process effectively avoids chatter marks, thermal burns and inner‑hole deformation. We select suitable grinding workflows according to part geometry and batch size, whether for low‑volume complex‑profile parts or high‑volume automatic mass production. Backed by strict process control and finished‑part inspection, we reliably meet strict quality requirements from aerospace, medical, automotive, hydraulic and precision‑mold clients across the world.
Usually achieves IT8 to IT6 precision grades, or about ±0.0005" to ±0.001" (±0.01 mm to ±0.025 mm)
Can reach IT5 grades or tighter, hitting tolerances down to ±0.0001" or ±0.00005" (0.0025 mm or 0.0013 mm) for specialized cylindrical or surface work.

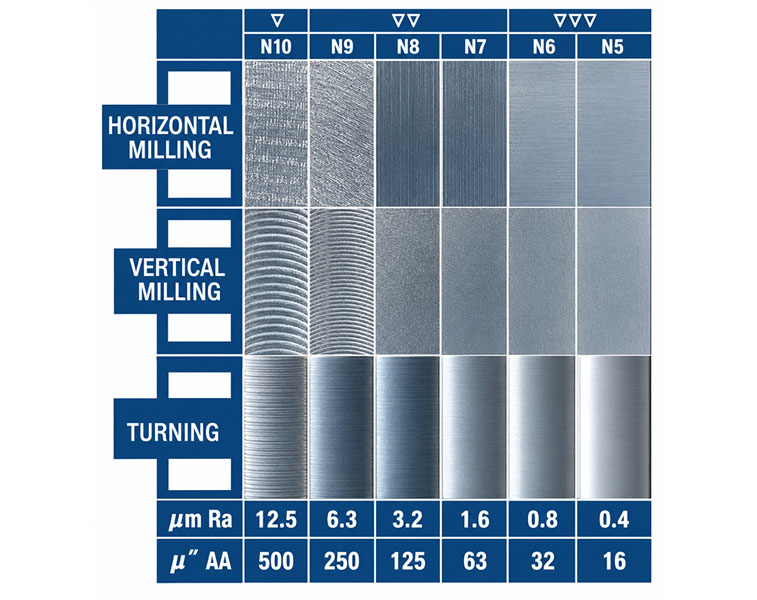

Standard finishes range from 8 to 32 microinches (0.2 to 0.8 µm), while ultra-precision or mirror grinding can achieve under 4 microinches (0.1 µm or lower).
Huazheng Precision provides precision grinding and surface finishing services for custom CNC machined parts. Our grinding capabilities include surface grinding, cylindrical grinding, internal grinding, centerless grinding and profile grinding, helping achieve tight dimensional tolerances, excellent flatness and controlled surface roughness.
From prototype development to mass production, we provide efficient and reliable grinding solutions tailored to your project needs. Our team possesses extensive experience in machining various magnesium alloys and offers appropriate surface treatments to enhance corrosion resistance, aesthetics, and durability, ensuring every part meets your technical and application requirements.
